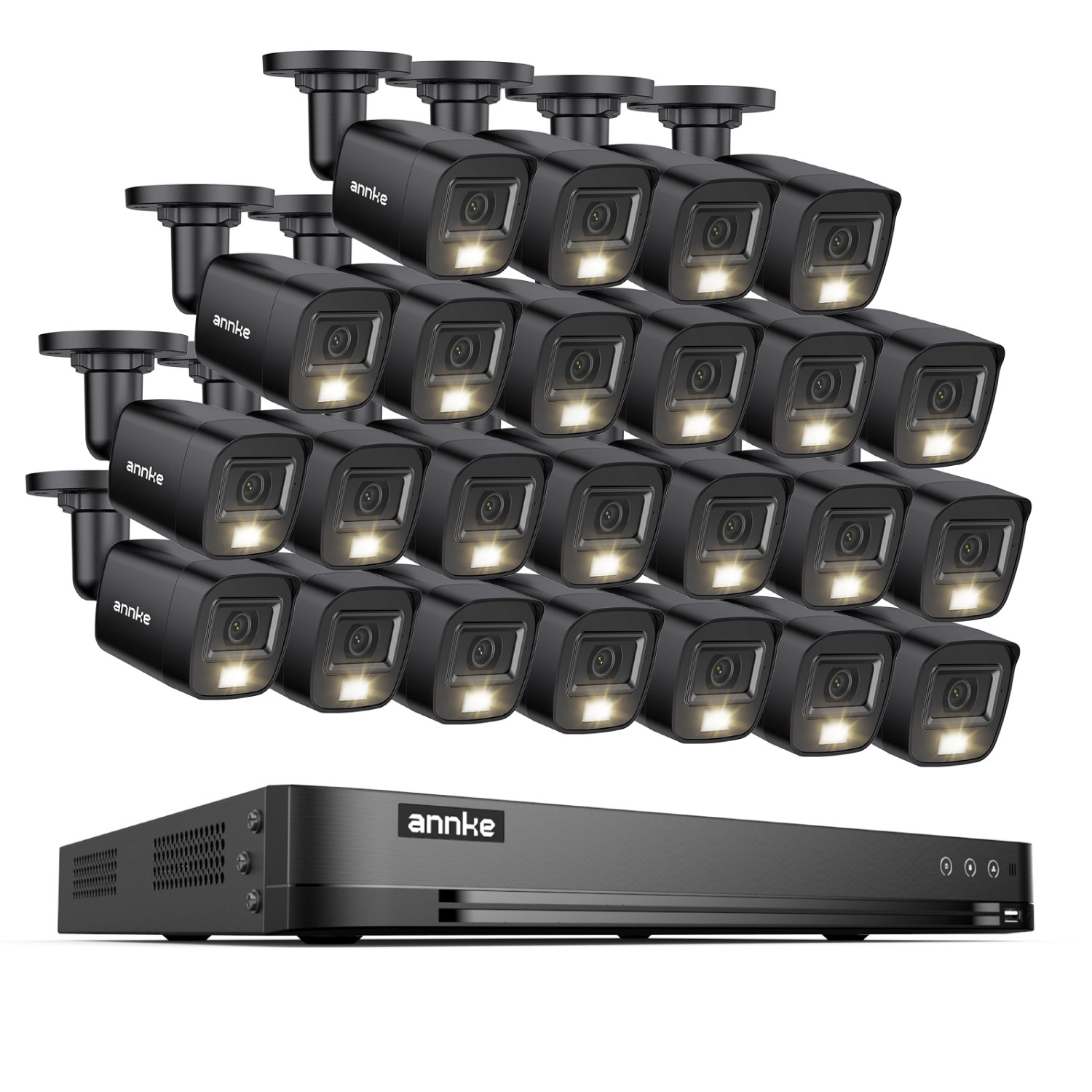

ANNKE 5MP Lite 32CH DVR 1080P CCTV Security Camera System Outdoor AI

ebay2023 ANNKE ADLK200 ANNKE 32CH DVR 1080P Full HD Color Night Security System

Smart Detection, Full Protection

  1080P Full HD Clarity, Day and Night

This security camera system delivers sharp, detailed video in 1080P Full HD resolution. Whether monitoring wide outdoor scenes or close-up details, you can enjoy the clear image day/night.

Smart Dual Light Color Night Vision Mode

Equipped with intelligent dual-light mode, The default smart mode automatically switches to color night vision once human/vehicle motions are detected, both reaching up to 66ft, see clear and detailed footage. of course, you can also set it to always be full color mode or IR night vision.

Accurate Human & Vehicle Detection

With the deep learning algorithm 2.0, This system detects the movements of key objects like human&vehicle, which reduces up to 99% false alarms caused by leaves, lights, rain, etc. Meanwhile, you can get email alerts in real time once find there is someone loitering around your home.

Full Protect Your Privacy

This security camera system features motion detection, privacy masking, customize privacy masking, video loss alerts, and video masking for full monitoring. With 4-channel line crossing and intrusion detection, it ensures precise alerts and smarter protection.

Powerful 5-IN-1 Compatibility

The versatile 5-in-1 DVR supports 3K Lite analog, TVI, AHD, CVI, CVBS, and up to 6MP IP cameras. With 32+2 channels, it allows 2×6MP IPC input and up to 34 IPCs(max 6MP), expandable to 40 IPCs in enhanced IP mode. Please note that IPCs must support ON-VIF protocol; analog channels can't be converted to IP.

Smart Alarms Keep You in Control

Never miss a moment with intelligent motion detection, our security camera sends you instant push notifications to your phone via App, and the email alerts push with 3 pictures. Whenever you're, you're always in the know. You can remote preview and playback anytime, anywhere.

Flexible Storage Options

This DVR supports NAS and IP SAN, cloud storage is available, or you can also choose DVR local storage, this DVR has 2 SATA ports, and each hard drive max supports 10TB.

Multiple Recording Options & Smart Playback

Various recording options for you to customize, default 24/7 video recording, auto loop override, and you can also set motion detection recording, scheduled recording or event detection, they're decided by your free choice. Support multi-channel preview and playback, can play back 16 channels at the same time. Also, smart search and playback can help you find what you want in loads of videos in a sec.

Easy to Install, Plug & Play

Simple plug & play setup and easy installation, you can connect your cameras and start recording in minutes. No complicated setup, perfect for homes, offices, or small businesses.

Enhanced Visual Quality

Equipped with digital DNR and WDR, our security camera system captures finer details regardless of lighting conditions, promising you all clear frames.

• Advanced H.265 Pro+ Encoding

  With the H.265 pro+ high-efficient encoding tech, you can record longer and use less bandwidth, don't worry about running out of storage space, and watch the videos smoothly.

• Remote Access & Multi-Devices Watch

  Whether smartphone, laptop or tablet, you can log in and view what happened at your home via them anytime, anywhere.

• Built to Brave Any Weather

  With an IP67 weatherproof rating, this security camera stands strong through rain, snow, heat, and cold—delivering reliable protection all year round.

32CH DVR Video & Audio Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Video Input 32CH Analog HD/Analog + 2CH (up to 34-ch) IP (Enhanced IP mode on:
8-ch (up to 40-ch), each up to 4 Mbps) Video Output VGA: 1-ch, up to 1080p/60 Hz
HDMI: 1-ch, up to 1080p/60 Hz
CVBS:1-ch, BNC (1.0 Vp-p, 75 Ω) Audio Input/Output Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)/32-ch via coaxial cable
Output:1-ch, RCA (Linear, 1 KΩ) ONVIF Support Supported Camera Types Support HD TVI Input: 3K/5MP/4 MP/1080p/720p
Support AHD Input: 4 MP/1080p/720p;
Support CVI Input: 4 MP/1080p/720p;
Support CVBS Input:PAL/NTSC;
Support IP Camera Input:6MP/5MP/4MP/3MP/2MP/720P Analog HD Playback Resolution 3K Lite@20fps; 5 MP lite@12 fps; 4MP Lite/1080P/@15fps;720P/WD1@25/30fps Smart event 4CH Line crossing & Intrusion Detection IPC Playback Resolution Up to 6 MP resolution Max Playback Channel 16CH Motion Detection 2.0 Deep learning-based motion detection 2.0 for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by human, vehicle and event type is supported; Hard Drive HDD 2 SATA interface HDD Capacity Up to 10 TB Capacity for each disk External Interface Network interface Support RS485;
RJ45 X1(10/100 M/1000 M self-adaptive Ethernet interface) USB USB 2.0 X1 + USB 3.0 X 1 General Operating Power DC12V,≤ 20W (without HDD) Dimensions(W x H x D) 385 × 315 × 52 mm (15.2 × 12.4 × 2.0 inch) Working Temperature '14 °F – 131 °F/-10 °C – 55 °C Weight (without hard disk)  ≤ 2 kg (4.4 lbs.) (Without HDD) Camera Camera Image sensor 2MP CMOS Image Sensor Video Resolution 1920 (H) × 1080 (V) Signal System PAL/NTSC Min.Illumination Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR Frame Rate TVI: 1080P @ 30 fps, 1080P @ 25 fps Lens 3.6mm Supplement Light type White Light & IR Supplement Light Range IR : Up to 20 m, white Light : Up to 20 m Supplement Light Mode IR light works normally, and it switches to white light when human or vehicle are detected at night. Wide Dynamic Range Digital WDR Angle of View Horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92° IR Cut Filter Yes Video Output BNC, switchable TVI/AHD/CVI/CVBS General Housing Plastic Color White Operating Power DC12V Operating Temperature '-40 °F – 140 °F /-40 °C – 60 °C Indoor/Outdoor Indoor/Outdoor Weatherproof Rating IP67 Dimension (L x W x H) 138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3") Weight Approx. 155 g (0.34 lb.)
